A Unique Combination of Talents
Revival Audio is all about a blend of classic and modern. Beautifully crafted cabinets and a seemingly conventional design hide incredibly well developed drivers and an innovative approach to the problem of internal acoustic pollution.
About The SPRINT 3
SPRINT 3 is a reflex-loaded, two-way bookshelf speaker of moderate proportions. It is equipped with the in-house designed 28mm soft-dome tweeter, with its built-in ARID (Anti Reflection Inner Dome) technology and specialized back-chamber design that significanly lowers rear energy intermodulation and standing waves. And Revival Audio's BSC (Basalt Sandwich Construction) 18cm woofer, delivering the best balance between rigidity, low-weight and damping.
The SPRINT 3 employs a more economic cabinet design and less expensive materials than those used in the ATALANTE range. But its a compromise that has very little impact on sound quality because of the use of Revival's 'Elytron' front baffle – a design born from hundreds of hours of painstaking simulation that provids a smooth waveguide effect and minimises defraction.
So the combination of the Revival's in-house drivers, clever anti-resonance devices and the Elytron sculpted front baffle produce a small spealer of incredible value and class leading performance. Indeed, used in a small to medium sized room and mached with comparable electronics, these speakers will complete a great sounding mid-priced system capable of fun, drama and a genuine audiophile performance.
Tech Insight

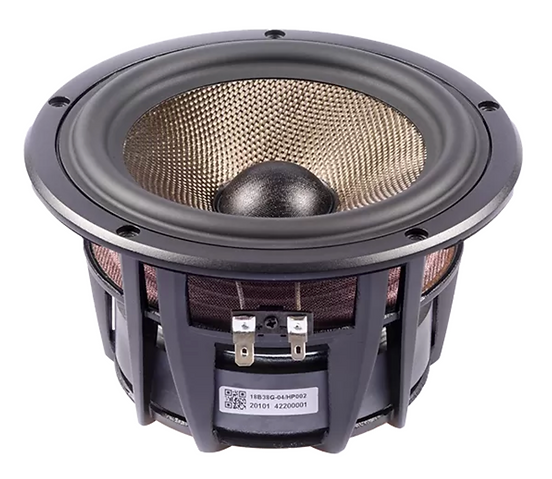

Basalt Sandwich Construction (BSC). The 7" woofer (and the 12" woofer on the ATALANTE 5) employs a unique sandwich construction that consists of 3 layers. A special felt layer is applied to the back of a basalt membrane and a specialised polymer glue lies inbetween . A combination that results in the best possible balance between stiffness and damping.
Specifications
Speakers
1 1/8” (28mm) soft-dome tweeter equipped with Revival Audio ARID (Anti Reflection Inner Dome) patented technology with a large back chamber with the low resonance frequency of 650Hz
7” (18cm) BSC (Basalt Sandwich Construction) woofer
Frequency Response (+/-3db) 55Hz – 22kHz (-3dB).
Sensitivity (2.83V/1m)87dB/2.83V/ 1 metre.
Nominal Impedance 6 ohms.
Minimum Impedance 4.5 ohms at 175Hz.
Crossover Frequency 1.8kHz.
Recommended Amplifier Power/Power handling: 150 watts, starting from 30 watts.
Recommended Room Size15 to 35 m2.
Dimensions (H*W*D)380 mm x 213 mm x 307 mm.
Net Weight 9.1 kg (20.06 lbs.)
Available Finishes: Blonde, Matt Black, Walnut.
Stands
Dimensions Base Plate:316 x 379mm. Height:599mm or 613mm with spikes. Top Plate:150 x 210mm
Weight:5.6kg
Available finish: Black
Matching & Setup
SPRINT 3 is a great bookshelf/standmount speaker. With the combination of outsanding driver technology and its software simulated baffle design, it offers outsatnding sound quality for the price. This speaker's 87dB sensitivity is considered around average and it's 6 Ohm impetance is a relatively easy load, but this is not a speaker recommended for low powered amplifiers. A good 30+ Watt valve amp, or a solid state amp from 50 Watts and up should be a good match. With more power though, say around 50-100 Watts, these speakers really shine.
Best suited to smaller rooms, these speakers work very well on shelves in a high-quality 'second' system in an office say, or on stands in a main system in a smaller room. They are very easy to position but do benefit from fine position adjustment to really bring their incredible imaging into focus. If you are looking to stand mount then we would recomment the matching Revival Audio Stands
